M Drive  > M200 Series  > 0.37Kw Single Phase 2.4Amps


Enlarge Image

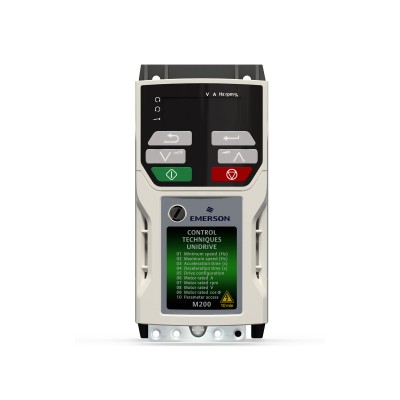

0.37Kw Single Phase 2.4Amps

Ref: M200-01200024

  • Also Available with build in potentiometer, Order - M201-
  • M200's SI interface enables integration with a wide range of available industry standard fieldbuses or extended I/O such as SI-Ethernet, SI-EtherCAT, SI-PROFINET, SI-PROFIBUS, SI-CANopen and SI-DeviceNet
  • AI-485 Adaptor option permits connection to RS485 networks using Modbus RTU
  • Rotor Flux Control (RFC-A) utilizes closed-loop current control to give maximum stability of induction motors at all powers
  • Easy-to-use fixed LED keypad
  • Useful parameter guide located on the front of the drive
  • Use Unidrive M Connect PC tool or SD card with AI-Backup adaptor to clone and transfer parameter sets
  • Din rail mounting is supported below 1.5kW



Enquire now
