PLCs > Direct Logic 05 > DL 05 CPU, 8 DC in / 6 DC out, with 12/24 VDC power supply

D0-05DD-D
Enlarge Image

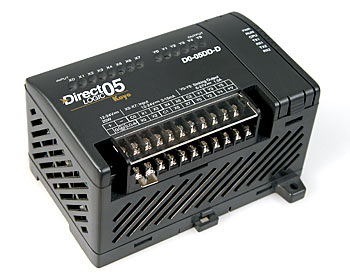

DL 05 CPU, 8 DC in / 6 DC out, with 12/24 VDC power supply

Ref: D0-05DD-D

DL05 CPU, 8 DC in / 6 DC out, 12/24 VDC power supply. 6K words total (2048 words ladder - flash, 4096 words V-memory), RLL/RLLPLUS programming, built-in RS232C programming port and additional RS232C communications port. Inputs: 8 DC inputs, 12-24 VDC current sinking/sourcing, 2 isolated commons. First 3 inputs are configurable in one of several high-speed I/O features such as 5KHz counter input, pulse catch input, or interrupt input (not available when using pulse output). Outputs: 6 DC outputs, 6-27 VDC current sinking, 1.0A/pt. max., 1 common. 2 outputs are configurable for independent CW/CCW pulse train output or step and direction pulse output up to 7KHz (0.5A/pt.) (not available when using high-speed inputs). One option slot available for I/O or communication module.
Data Sheet
